Micro Rectangular Rubber Seal J30JM-21TJL Connector 21 Pin Male Plug Connector
J30JM‑21TJL is a 21‑pin gel‑sealed male crimp‑style micro‑rectangular connector, equipped with dual‑screw locking mechanism. The internal gel sealing structure delivers reliable hermetic performance against moisture, humidity and dust invasion. It features compact high‑density layout and excellent anti‑vibration & anti‑shock capability. Mating receptacle: J30JM‑21ZKL.
Product display
Product Performance Details
| Product model |
J30JM-21TJL |
Contact resistance |
≤10mΩ |
| Ambient temperature |
-55℃~+125℃ |
Insulation resistance |
≥5000MΩ |
| Vibration |
10Hz~2000Hz 196m/s2 |
Medium pressure resistance |
800V |
| Random vibration |
Power spectral density is 0.4G2 /Hz and the root mean square value of the total acceleration rate is 23.1G |
Mechanical life |
500 times |
| Impact |
735m/s2 11ms |
Rated current |
3 A |

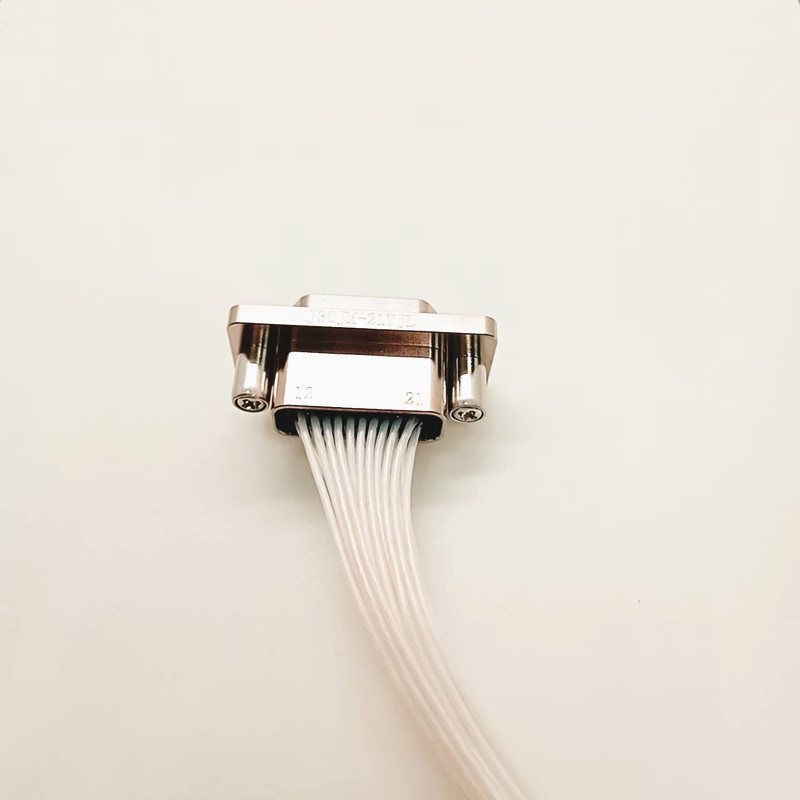

Physical product display
Product appearance drawing
Related product recommendations
Product selection reference
Production Plant Area
Machining production workshop
Precision Assembly Production Workshop
Glass-to-metal sealed production workshop
Obtained Certification Certificate
Customer visit
Product packaging
Packaging and Shipping
- Standard export carton
- As per customized specifications such as logo or others According to customers' requirements
- Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
