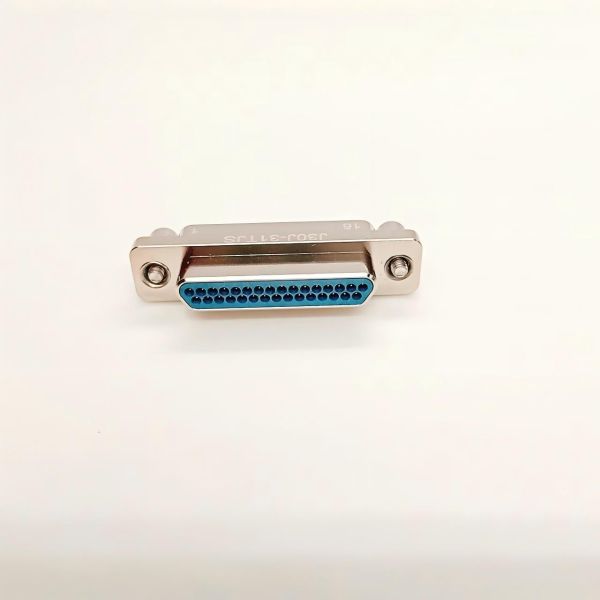

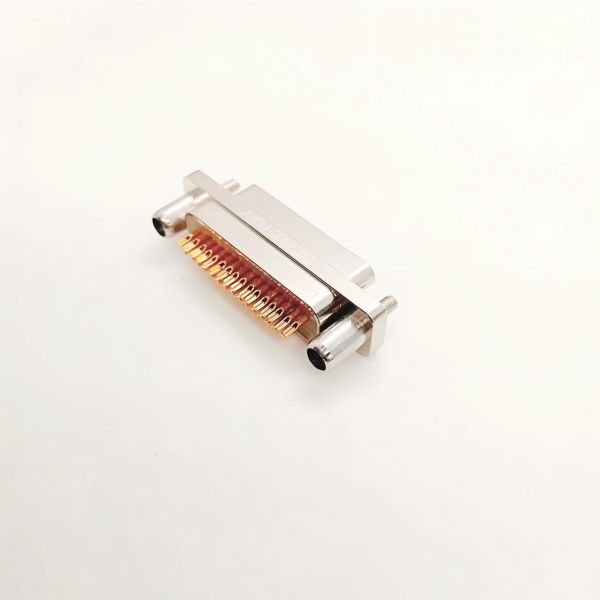

Rectangular Micro-D Connectors M83513 J30J-31TJS 1.27 Pitch Soldering Type Male Connector

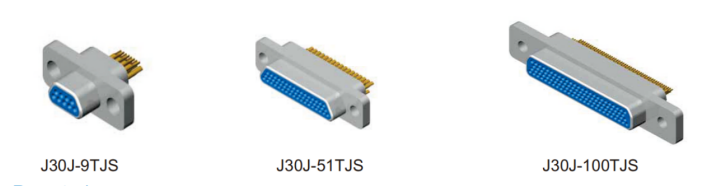

The J30J series of micro rectangular electrical connectors comply with GJB2446A (equivalent to MIL-DTL-83513), corresponding to the American MDM series products. They feature precision twisted wire elastic pins with a contact piece spacing of 1.27mm. The compact product design incorporates a metal casing available in 12 specifications ranging from 9 to 144 pins. The insulator material uses PPS to meet high-temperature resistance and aerospace application requirements.
Plugs and sockets feature threaded locking, guidance, and misinsertion prevention mechanisms. Termination forms include crimping, direct insertion, bending insertion, and welding. The crimped wire cross-sectional area ranges from 0.1mm² to 0.15mm², making these connectors suitable for interconnection in various electronic and electrical systems requiring high density, miniaturization, lightweight construction, and high reliability.
Frequently Asked Questions
Q: Are you a trading company or manufacturer?
A: Our company is a comprehensive manufacturer with 17 years of R&D, manufacturing, and sales experience in aeronautics, astronautics, and commercial RF microwave transmission components.
Q: What are the main products of your company?
A: Main products include RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors, and other microwave products.
Q: Does your company accept customized products?
A: We accept ODM (Original Design Manufacturing) services.
Q: Does your company provide free samples?
A: We support free samples with freight paid on delivery.
Q: What is the minimum order quantity of your company's products?
A: 200 pieces. Pricing is higher for orders under 200 pieces.
Q: Which logistics company does your company ship through?
A: We cooperate with international logistics companies DHL, UPS, FedEx, TNT year-round to ensure quick delivery with the lowest shipping costs. We also offer air and sea freight options.
Q: How long does it usually take to receive the goods?
A: Generally 3-8 working days for international express, 5-8 working days for air freight.
Q: What payment methods does your company accept?
A: We accept L/C, T/T, Western Union, and Trade Assurance (credit card & T/T).
Q: How long is your warranty?
A: The warranty period is three months.
