LYP Series Aviation Plug Connector 12 Pin Male Circular Connector with 1500V Withstand Voltage and Aluminum Alloy Body

Brand Name : ZSX

Model Number : LYP28TJ21UQ

Certification : ISO9001

Place of Origin : China

MOQ : 50 pcs

Price : Depending on the quantity

Payment Terms : T/T,D/P,Western Union

Supply Ability : 1000000Pcs/Year

Delivery Time : 5-8 Days

Packaging Details : Carton packaging

Name : Aviation Plug Connector

Gender : Male

Boday Material : Aluminum alloy

Insulator material : Thermosetting plastics

Working temperature : -55℃~+125℃

Withstand voltage : 1500V

Contact Now

25A Aviation Plug Connector Male 12 Pin Plug Connector 1500V LYP28TJ21UQ

LYP Series Aviation Plug Circular Connector 12-Pin Plug Connector LYP28TJ21UQ

The shell of the LYP series products is made of high-strength aluminum alloy material and connected by a bayonet-type outer groove. It features a small volume, light weight, ease of use, resistance to plugging and unplugging, good sealing performance, corrosion resistance, good electrical conductivity and excellent pressure resistance. And it can be interchanged with the YP series, making it an ideal replacement for the old-fashioned P-type connectors. It is widely applicable to the circuit connection between electrical equipment and various instruments and meters.

Product Performance Details

Product Model	LYP28TJ21UQ	Contact Piece	Gold plating of copper alloy
Shell Material	Aluminum alloy	Insulation Resistance	≥5000MΩ
Vibration	10Hz~2000Hz 147m/s²	Working Voltage	600V
Insulator	Thermosetting plastics	Mechanical Life	500 times
Impact	980m/s²	Relative Humidity	When the temperature is 40±2℃, it is 90% to 95%
Collision	Acceleration 490m/s²	Withstand Voltage	1500V
Working Temperature	-55℃ ~ +125℃	Working Current	25A

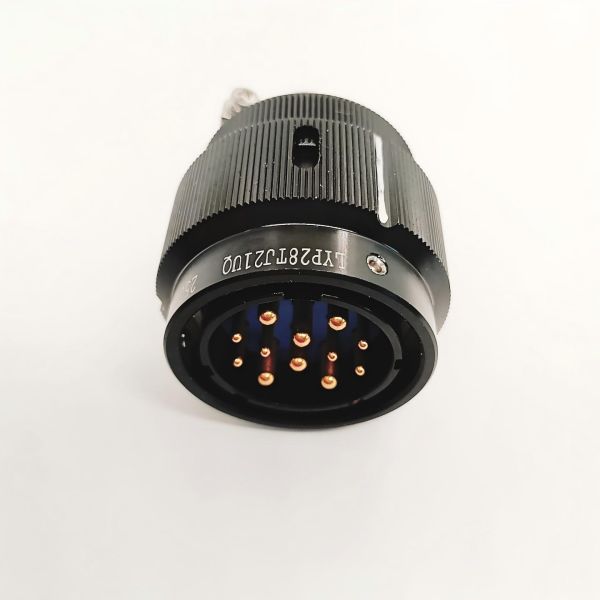

Physical Product Display

LYP Series Aviation Plug Connector 12 Pin Male Circular Connector with 1500V Withstand Voltage and Aluminum Alloy Body

Product External Dimensions

Related Product Recommendations

Display of Strength

Office Area

Production Plant Area

Machining Production Workshop

Precision Assembly Production Workshop

Glass-to-Metal Sealed Production Workshop

Obtained Certification Certificate

Customer Visit

Product Packaging

Packaging and Shipping

Standard export carton
As per customized specifications such as logo or others according to customers' requirements
Delivery time: Within 24 hours for stocks, 3-4 weeks for mass production orders (based on different quantities, ODM, etc.)

Frequently Asked Questions

Q: Are you trading company or manufacturer?

A: Our company is a comprehensive manufacturer with 17 years of R&D, manufacturing and sales of Aeronautics and Astronautics and commercial RF microwave transmission components.

Q: What are the main products of your company?

A: Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.

Q: Does your company accept customized products?

A: We accept ODM.

Q: Does your company provide free samples?

A: We support free samples with freight paid on delivery.

Q: What is the minimum order quantity of your company's products?

A: 200 pieces. The price is more expensive under 200 pieces.

Q: Which logistics company does your company ship through?

A: Our company cooperates with international logistics companies DHL, UPS, FedEx, TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. There are also air and sea logistics.

Q: How long does it usually take to receive the goods?

A: Generally, 3-8 working days for international express, 5-8 working days for air freight.

Q: What payment methods does your company accept?

A: We accept L/C, T/T, Western Union, Trade Assurance (credit card & T/T).

Q: How long is your warranty?

A: The warranty period is three months.
